High-Speed JET Capable of Handling Everything from Low to High Viscosity
BEATRUM Series
-
SET (San-ei Tech)
Jetting Valve
The BEATRUM series of non-contact jet dispensers is engineered for the precise and rapid application of a wide range of industrial fluids. Utilizing advanced piezoelectric technology, these dispensers provide a reliable solution for high-speed manufacturing processes without physical contact with the substrate.
Features
- Applicable for a wide viscosity range
- Lowest internal volume valve
- Various nozzle options
- Reduces bubbles in coating application
- Less maintenance with few wetted parts
- Stable dispensing up to 250Hz
Resources
SJVH7000
SJVH7000-H
SJVH7000
SJVH7000-H
Two Valve Options
The BEATRUM series is available with two distinct valve configurations to provide flexibility for various applications. These options allow for precise adaptation to your specific needs.

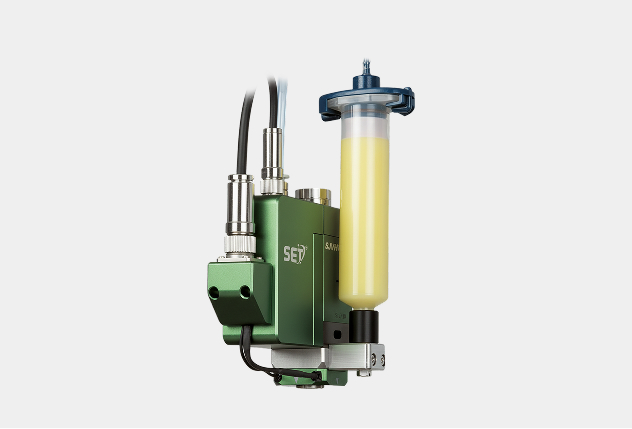

BEATRUM
SJVH7000
- Available from low viscosity to high viscosity
- loaded volume
- Abundant optional nozzles
- Reduces bubbles when applying coating agent
- Easy cleaning with fewer parts in contact with liquid
- Stable application up to 250Hz

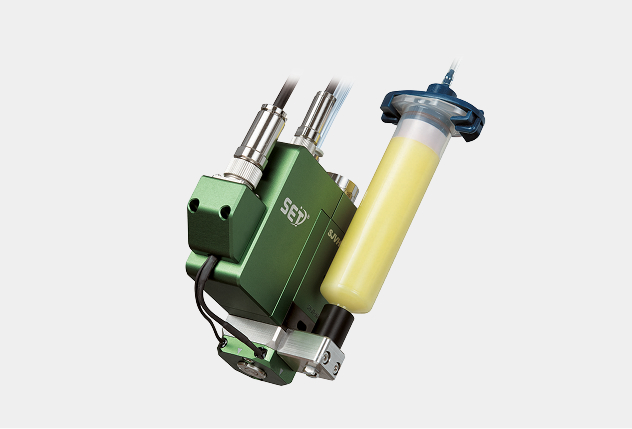

BEATRUM-H
SJVH7000-H
- JET coating with high viscosity agent possible (~300,000mPa・s)
- Abundant optional nozzles and sheet parts
- Easy maintenance with fewer parts in contact with liquid
- Stable application up to 250Hz
Two Valve Options
The BEATRUM series is available with two distinct valve configurations to provide flexibility for various applications. These options allow for precise adaptation to your specific needs.
BEATRUM
SJVH7000
- Available from low viscosity to high viscosity
- loaded volume
- Abundant optional nozzles
- Reduces bubbles when applying coating agent
- Easy cleaning with fewer parts in contact with liquid
- Stable application up to 250Hz
BEATRUM-H
SJVH7000-H
- JET coating with high viscosity agent possible (~300,000mPa・s)
- Abundant optional nozzles and sheet parts
- Easy maintenance with fewer parts in contact with liquid
- Stable application up to 250Hz
One Dedicated Controller
SJVC7000
SJVC7000 is a compact controller that has all the functions necessary for JET dispensing, and has the following functions:
- Shot timer function
- Recipe registration function
- External control
- Heater function
Examples of Compatible Liquids & Applications
The BEATRUM series is compatible with a wide array of fluids, including underfill, dam & fill, moisture-proof coating, UV adhesive, grease, oil, silver paste, paint, ink, primer, and solvent. This versatility makes it an ideal solution for a diverse range of manufacturing and industrial processes.
LED Phosphor Coating
Acrylic Two-Component Adhesive Application
Grease Application
Common Use Cases
The EXJET is suited for precise micro-dot placement of high-viscosity fluids in electronics and semiconductor manufacturing. Common applications include underfill, die attach, camera module sealing, wafer mounting, MEMS cover sealing, and sensor component packaging.
Micro-coating on Substrates
Camera Module Sealing
Die Attach
