Model 2400 High-Pressure Filling System
Model 2400
-
Tridak
High-Pressure Filling System

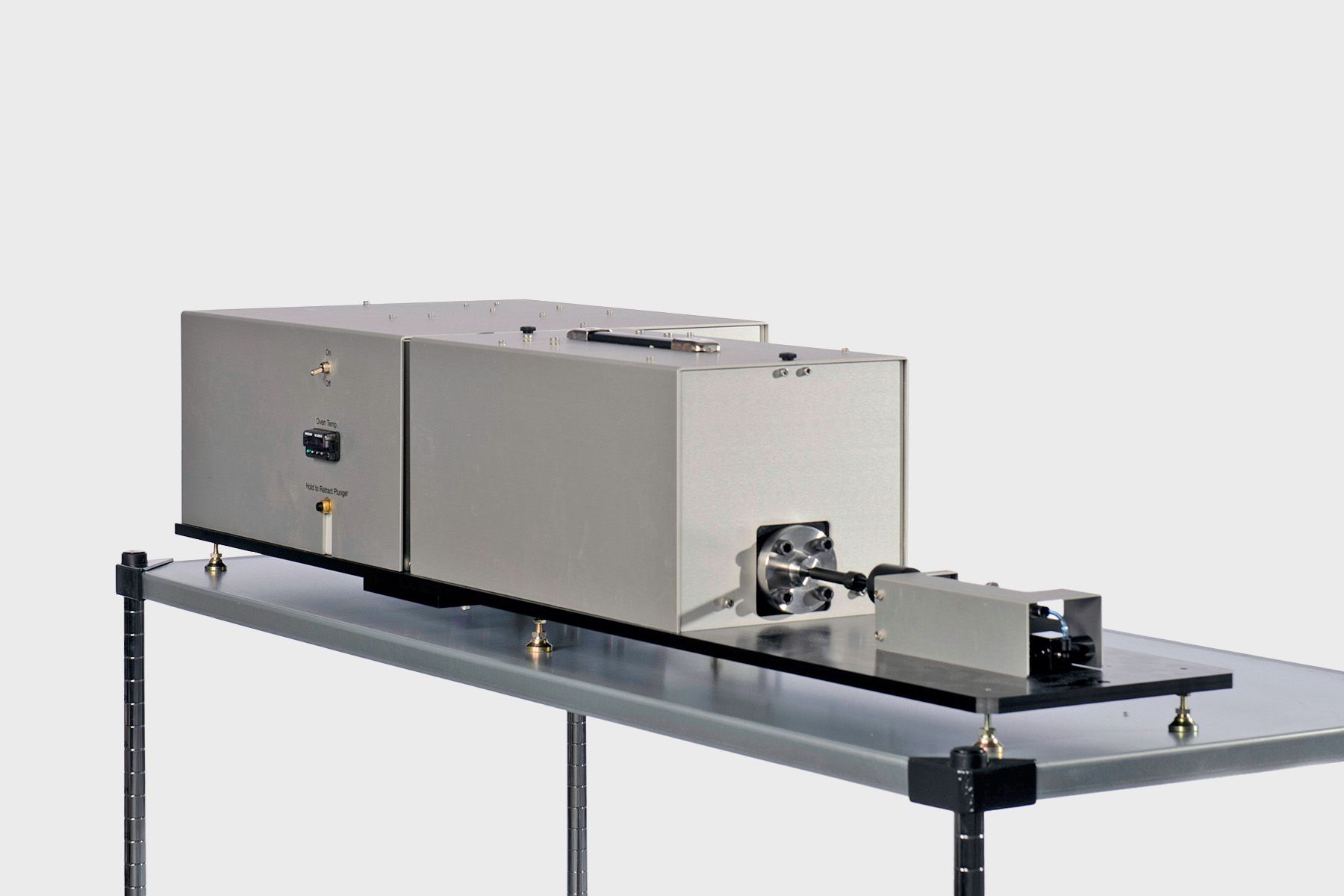

The Tridak Model 2400 high-pressure filling system accurately fills packages with extremely high-viscosity materials such as dental composites and restoratives. Due to “fillers”, composition, and tackiness, these materials can be difficult to dispense and can clog typical filling machines.
The system is semi-automated and bench-top mounted. It consists of the base system and a refillable cartridge/piston assembly that holds bulk material, allowing it to be prepared off-line and permitting the user to conveniently store it for future use.
Tridak fabricates nozzles that precisely match the packages being filled.
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Features
- Dispenses extremely high-viscosity, filled materials
- Solid-state sensing system controls the amount of fill
- Includes a forced convection oven to lower material viscosity when needed
- Fills single syringes and compules
- Removable cartridge assembly allows materials to be prepared off-line and permits easy storage of materials for future use
- Quick, convenient changeover of material
- Stainless steel medical version is available
- Other customized versions available – details upon request
Resources
Infographics
Product Bulletins
User Manuals
| Property | Specifications |
|---|---|
| Part Number(s) | T10095 - Model 2400 (includes one single nozzle for syringes or compules) |
| Reservoir Size | 900 mL |
| Required Electrical Power | 110 VAC, 50/60 Hz |
| Required Air | Clean, dry, non-lubricated air operating pressure of 60-90 psi [4-6 bar] |
| Dimensions (W x H x L) | 18 in x 11.125 in x 56.75 in (45.72 cm x 28.26 cm x 144.15 cm) |
| Compatible Viscosity Range | Non-flowing pastes only |
