Small Pressure Reservoirs for Various Applications
ST Series
-
SR-TEK
Pressure Tank
The ST series from SR-TEK features small pressure reservoirs designed for a wide range of industrial dispensing applications. Constructed exclusively from high-grade 303, 304, or 316 stainless steel, these reservoirs ensure material integrity by preventing corrosion and contamination.
The ST series is available in multiple standard sizes to accommodate different volume requirements.
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Features
- Durable Stainless Steel Construction - constructed from stainless steel 303, 304, or 316 to prevent corrosion and ensure material integrity
- Versatile Size Range - available in five standard capacities from 1L to 25L, rated for a maximum operating pressure of 6.9 bar (100 psi)
- Integrated Pressure Control - includes an air pressure regulator with a gauge and a safety relief valve to manage fluid flow rates safely
Resources
(SR-TEK) ST Series Product Bulletin
Specifications
Model Selection
Browse the available models and their specifications. For pricing and lead times, please select "Request Quote" for the specific configuration you require.

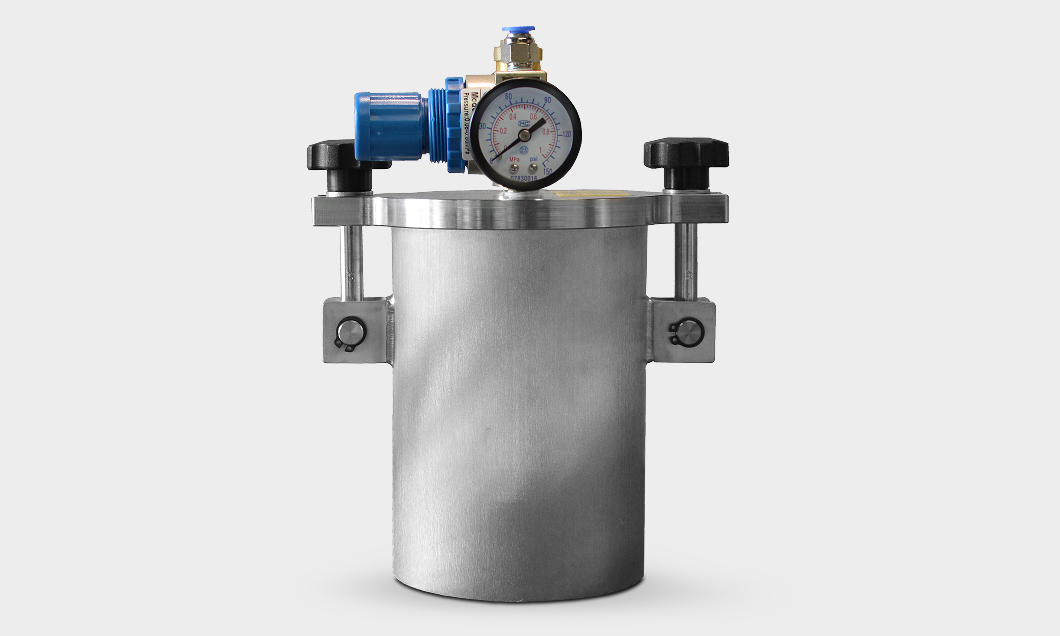

1000ML-ST
Stainless Steel Pressure Tank 1L
Capacity
1 Liter (0.26 gal)
Weight
5.29 lbs (2.4 kg)
Height
8.86 in (225 mm)

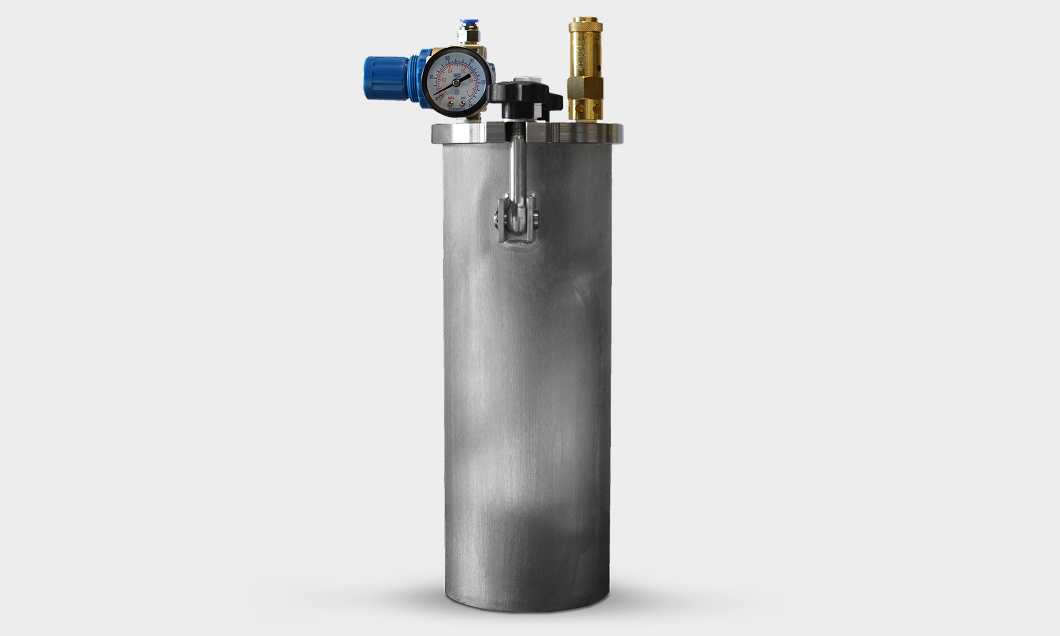

2000ML-ST
Stainless Steel Pressure Tank 2L
Capacity
2 Liters (0.53 gal)
Weight
6.83 lbs (3.1 kg)
Height
14.17 in (360 mm)

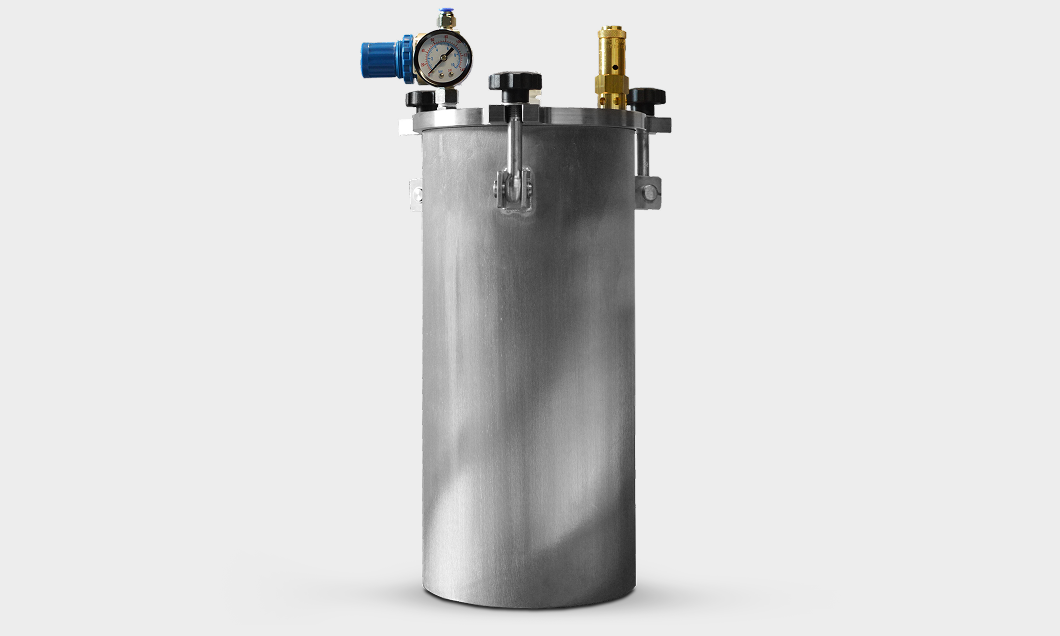

5000ML-ST
Stainless Steel Pressure Tank 5L
Capacity
5 Liters (1.32 gal)
Weight
12.57 lbs (5.7 kg)
Height
15.98 in (406 mm)
1000CL-ST
Stainless Steel Pressure Tank 10L
Capacity
10 Liters (2.64 gal)
Weight
34.17 lbs (15.5 kg)
Height
19.06 in (484 mm)

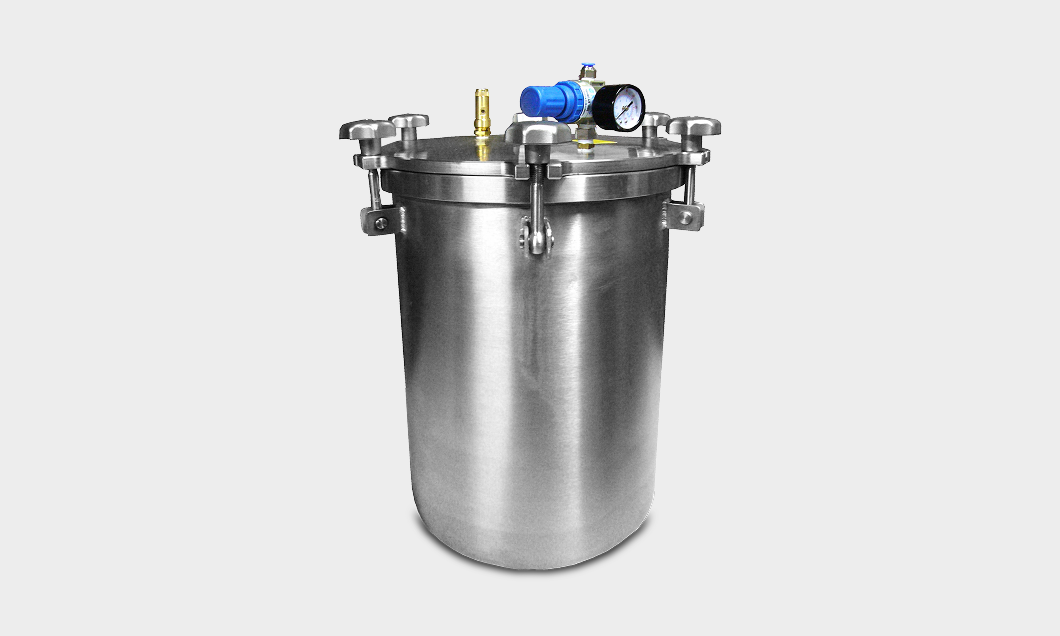

2500CL-ST
Stainless Steel Pressure Tank 25L
Capacity
25 Liters (6.6 gal)
Weight
70.77 lbs (32.1 kg)
Height
21.34 in (542 mm)
Not certain which choice is right for you?
We'll help identify the best equipment for your material and workflow.
