Model 1050 Syringe Filling System
Model 1050
-
Tridak
Syringe Filling System

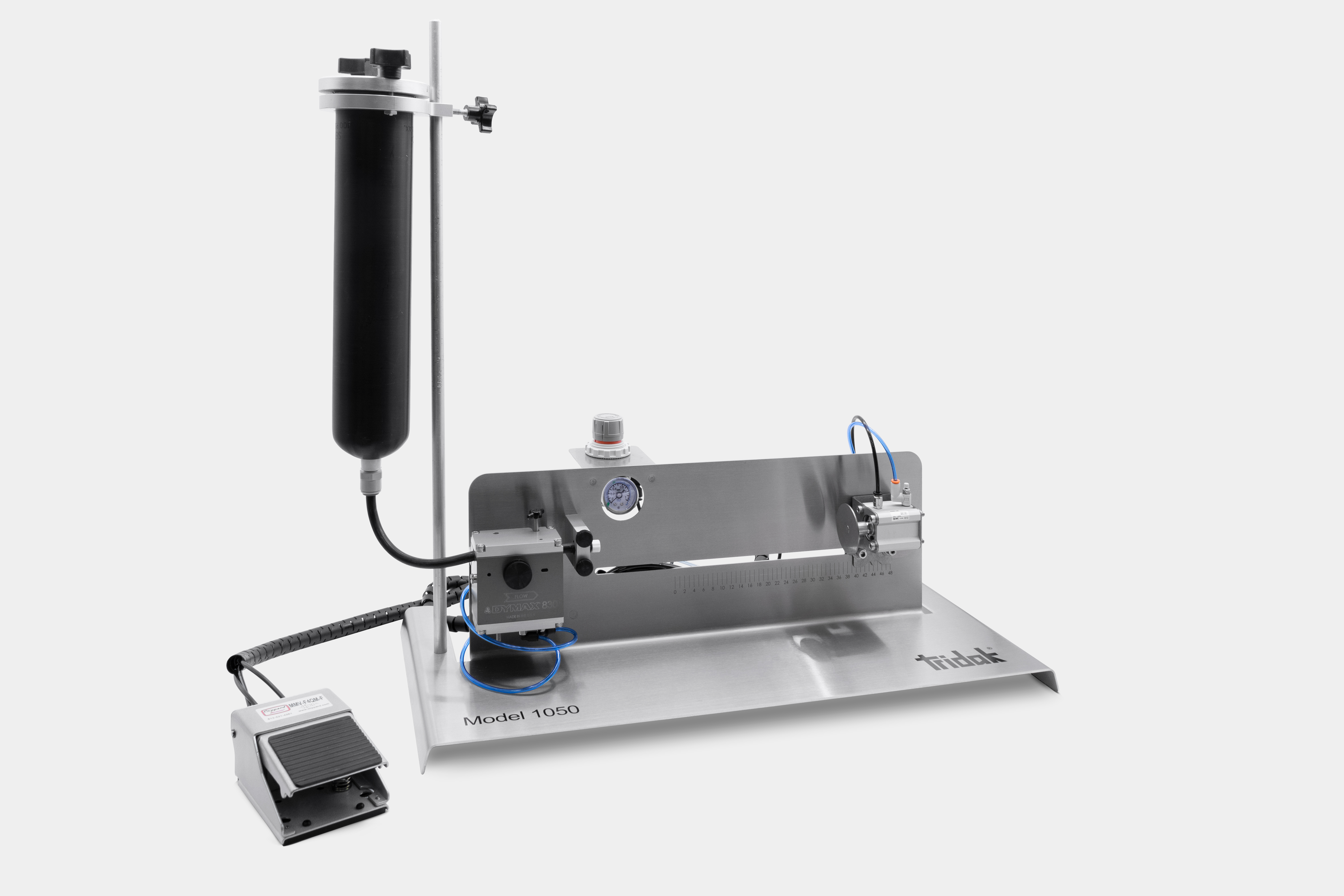

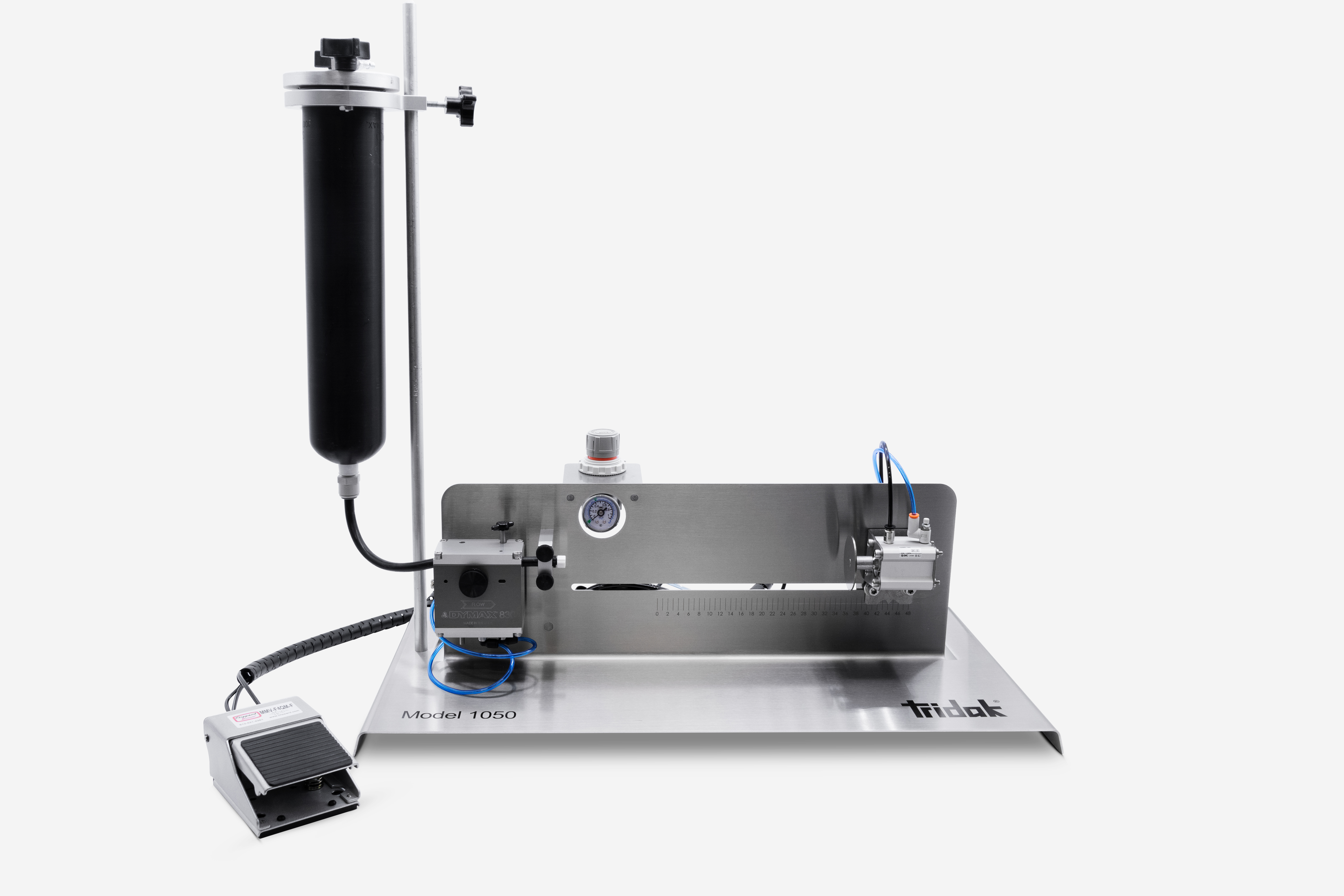

The Tridak® Model 1050 syringe filling system is designed to fill syringes, one at a time, quickly and accurately from a material reservoir. The syringe filler is manually loaded and unloaded, making it ideal for low-volume production or as an alternative to filling syringes manually. It utilizes a Model 830 disposable fluid path valve to make material changeover fast and easy while minimizing cross-contamination. This valve also features an adjustable suck-back for accurate, clean cut-off for stringy or tacky materials. The disposable fluid path can be fitted with a series of adapters to fill Luer-Lock and Oral tip syringe types. The Model 1050 is recommended for use with fluids having a viscosity between 1 – 60,000 cP and can be paired with a number of different material reservoirs to accommodate different material package sizes.
Features
- Utilizes disposable fluid path valve technology which eliminates cross-contamination and minimizes clean-up and downtime during product changeover
- Nozzle-end filling process with pre-inserted plunger minimizes air entrapment
- Interchangeable filling nozzles manufactured to specific syringe styles
- Accurate and consistent fills each time using an adjustable, positive, mechanical stop
- Fluid path can be capped and remain attached to the material cartridge for storage and quick material change over
- Dispense valve features adjustable suck-back for a clean dispense of stringy and tacky materials
- On board material reservoir pressure regulator to control the reservoir pressure used for filling
- Adjustable pneumatic stop assures accurate fills
- Foot switch for hands-free fill cycle activation
- Smooth, easy-to-clean surface
- System fills 1-60 mL syringes with pre-inserted pistons; tooling nozzles are available for both Luer Lock and Oral tips
Resources
Model 1050 Syringe Filler

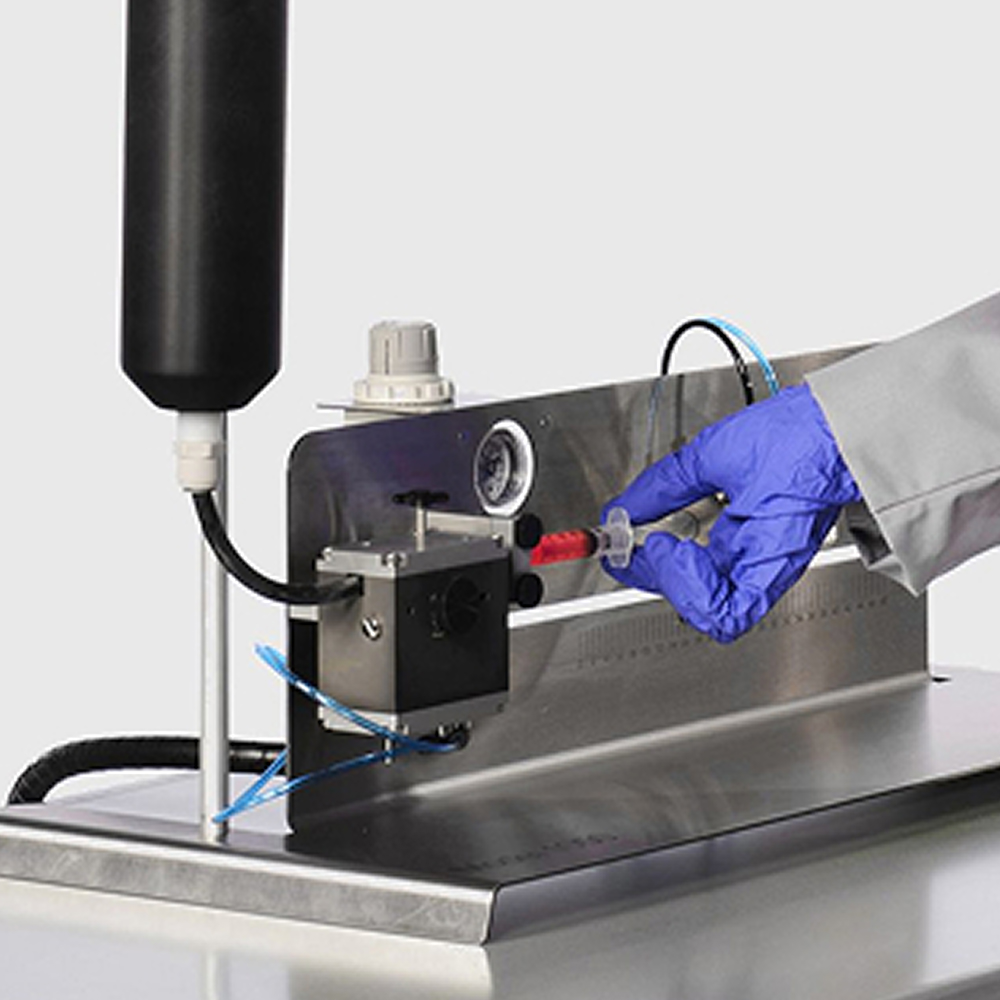

The Tridak Model 1050 is a semi-automated, bench-top syringe filling system. This system is manually loaded and unloaded, making it ideal for low volume production or as an alternative to filling syringes manually. Each syringe is filled through the tip, allowing this system to be compatible with a number of different syringe types including Luer Lock syringes, Luer Slip syringes, and Oral syringes.
| Property | Specifications |
|---|---|

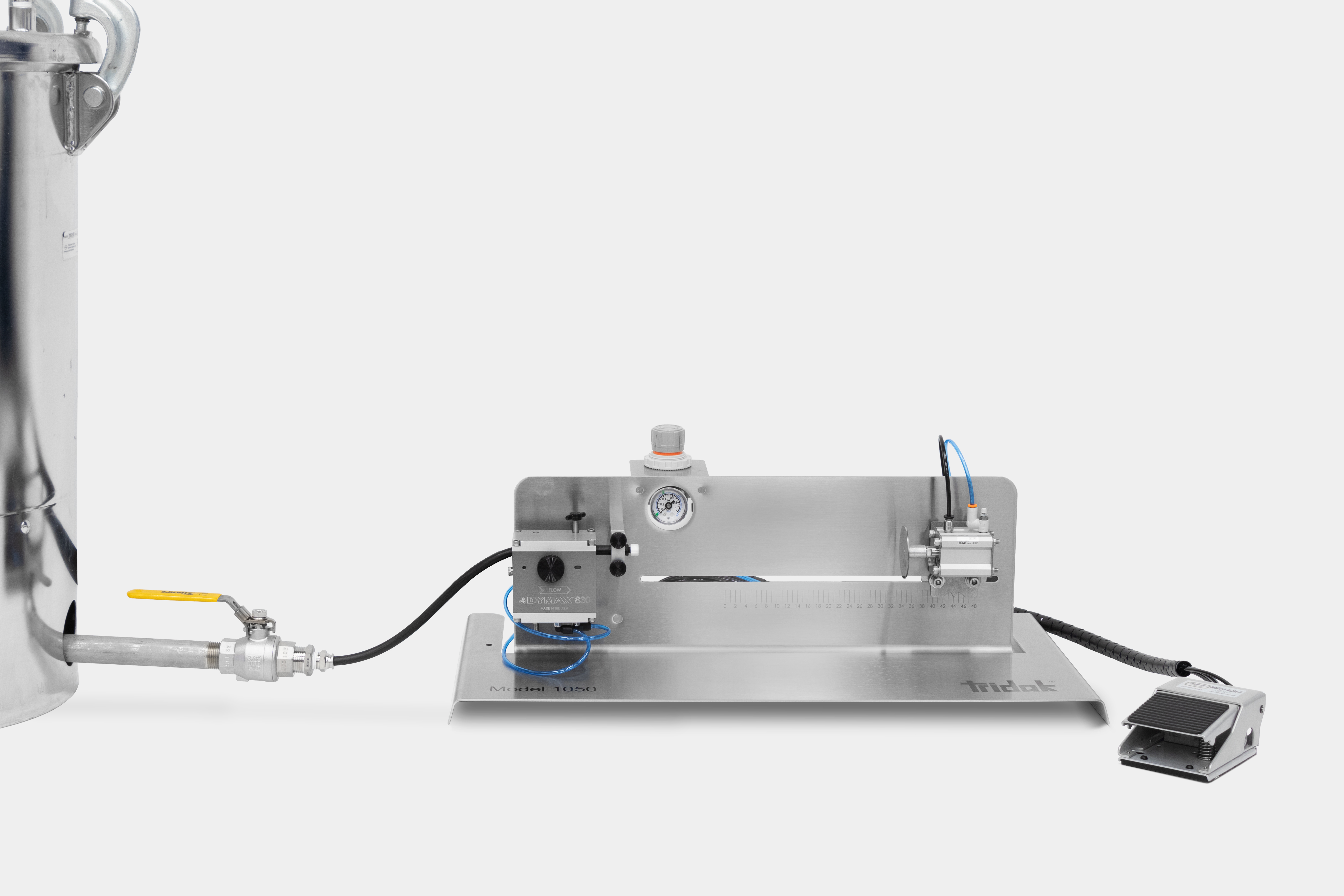

| Part Number(s) | T18166 - Model 1050, Base Unit (No Reservoir) T18165 - Model 1050 w/ 946 mL (32 oz.) Reservoir T18167 - Model 1050 w/ 550 mL (20 0z.) Reservoir T18289 - Model 1050 w/ Bottle Reservoir (up to 1 Gal.) T18290 - Model 1050 w/ 10 Gal. Reservoir (up to 5 Gal. Pail) |
| Operating Air Pressure | 60 psi (4.1 bar) min / 100 psi (6.9 bar) max |
| Dimensions (L x W x H) | 23.6 in x 12 in x 25 in (60 cm x 30.48 cm x 63.50 cm) |
| Viscosity Range | 1 – 60,000 cP (or much higher depending on type of reservoir used) |
Designed to minimize air entrapment
