Model 1001 Syringe Filling System

Model 1001

-

Tridak

Syringe Filling System

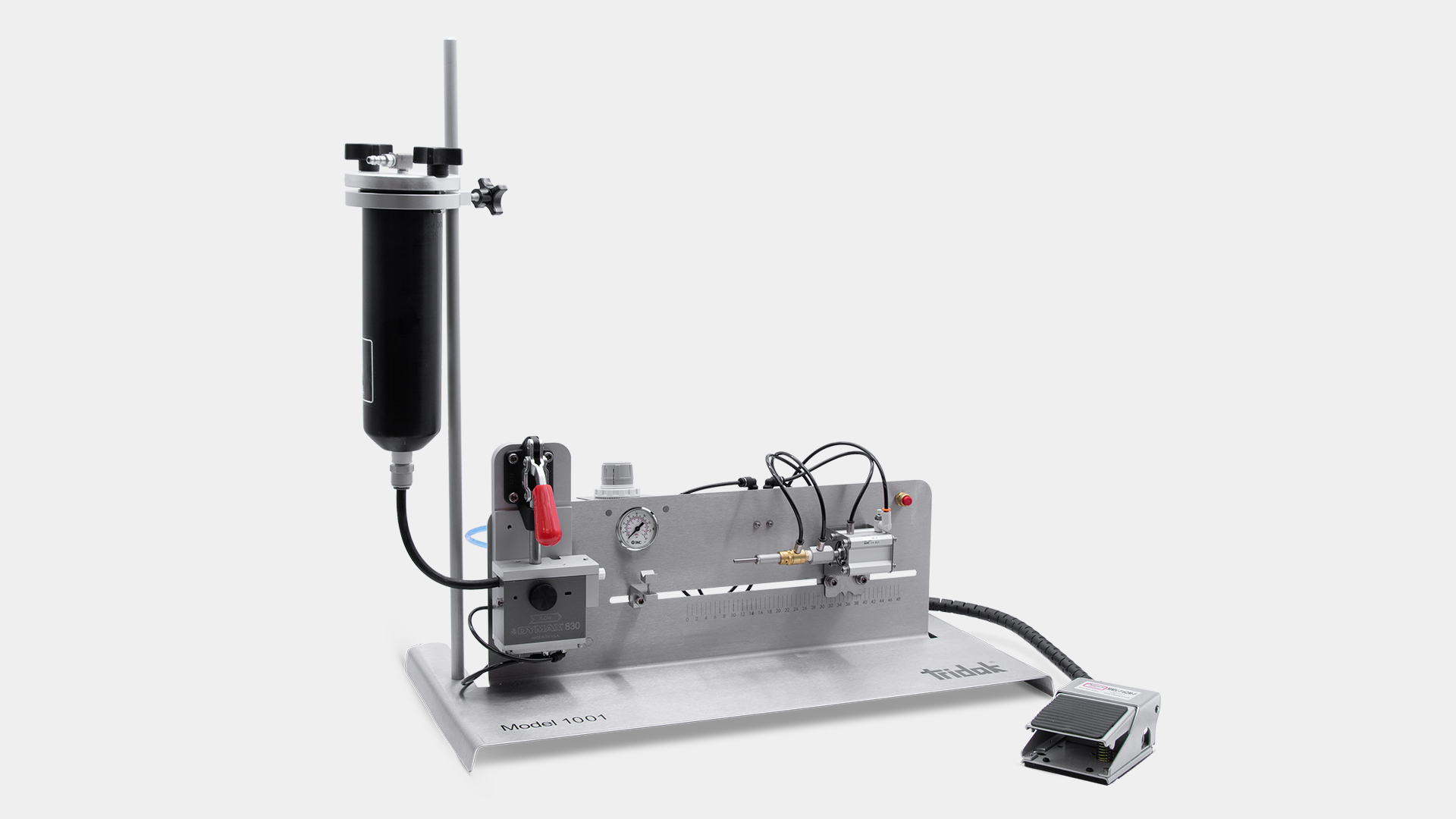

The Tridak® Model 1001 benchtop syringe filling system is designed to fill syringes, one at a time, quickly and accurately from a material reservoir with one press of the foot switch. The system is manually loaded and unloaded, making it ideal for low-volume production or as an alternative to filling syringes manually. The Model 830 disposable fluid path valve and quick-change clamping mechanism make material changeover fast and easy while minimizing cross-contamination. This valve also features adjustable suck-back for accurate, clean cut-off for stringy or tacky materials. The disposable fluid path can be fitted with a series of adapters to fill Luer-Lock and Oral tip syringe types. The Model 1001 is recommended for use with fluids having a viscosity between 1-60,000 cP and can be paired with either a 20 oz or 32 oz material reservoir to accommodate different material package sizes.

Request Quote
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.

Features

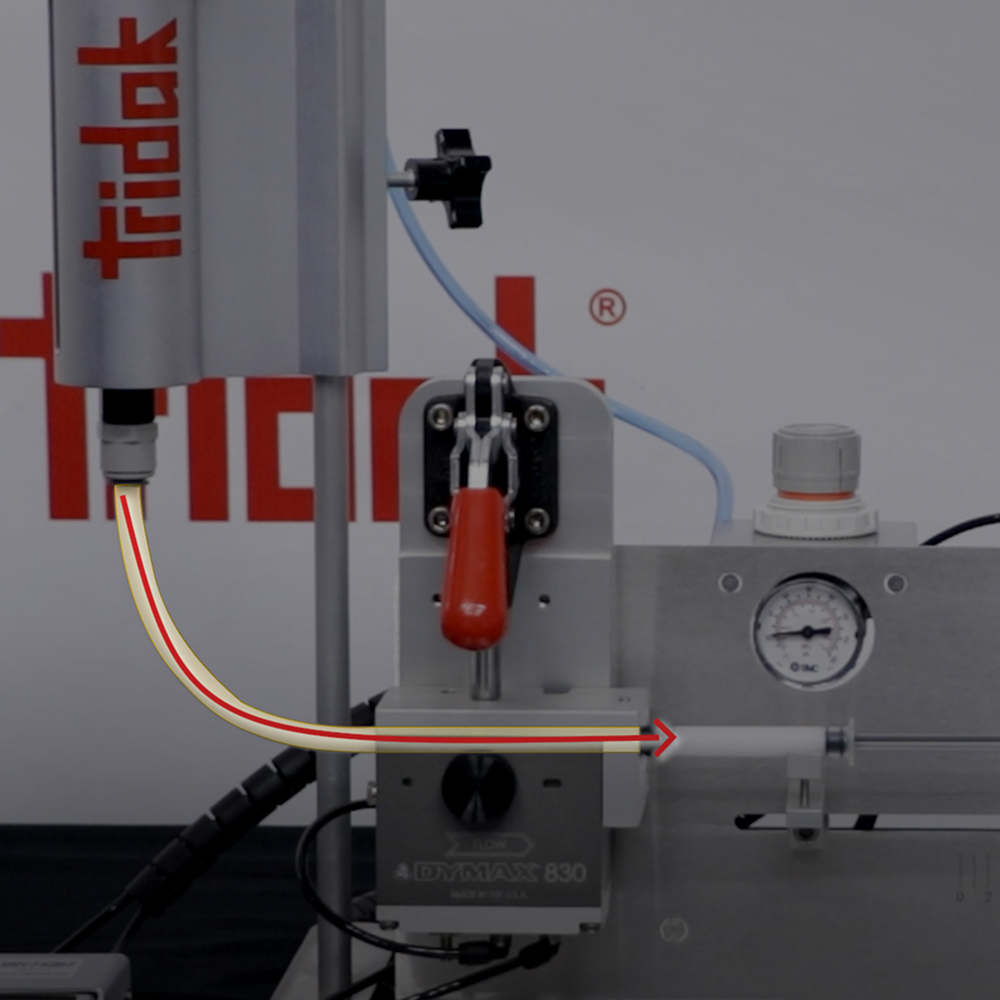

  • Utilizes disposable fluid path valve technology which eliminates cross-contamination and minimizes clean-up and downtime during product changeover
  • Fluid path can be capped and remain attached to the material cartridge for storage & quick material change over
  • No tools required for fluid line installation. The tube support quick-change clamp reduces fluid path removal and installation time to less than 30 seconds
  • Dispensing valve features adjustable suck-back for a clean dispense of stringy and tacky materials

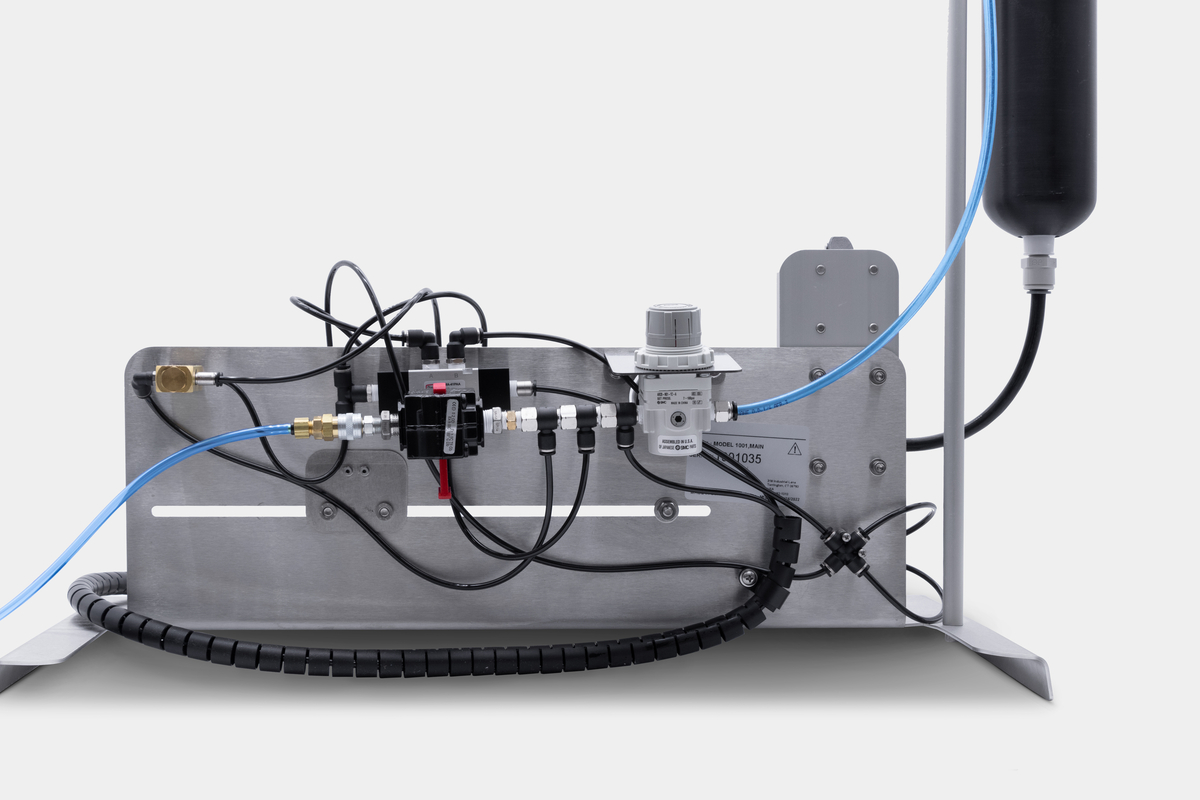

  • System features an on-board material reservoir pressure regulator to control the reservoir pressure used for filling
  • Automatic adjustable pneumatic stop assures accurate and consistent fills with minimal operator input
  • Foot switch for hands-free, one-press fill cycle activation
  • Smooth, easy-to-clean surface
  • System fills 1-60 mL syringes with pre-inserted pistons; tooling nozzles are available for both Luer-Lock and Oral tips

Resources

No items found.
Specifications
PropertySpecifications
Part Number(s)T18759 - Model 1001, Base Unit (No Reservoir) T18760 - Model 1001 w/ 500 mL (20 oz.) Reservoir T18761 - Model 1001 w/ 946 mL (32 oz.) Reservoir
Operating Pressure60 psi (4.1 bar) min / 100 psi (6.9 bar) max
Dimensions (L x W x H)23.6 in x 12 in x 25 in (60 cm x 30.48 cm x 63.50 cm)
Viscosity Range1 – 60,000 cP (or much higher depending on type of reservoir used)

Request more information

Need additional specs, details or help deciding if this product is right for you? We're here to assist.
