Model 1200 Syringe Filling System

Model 1200

-

Tridak

Dual-Component Syringe Filler

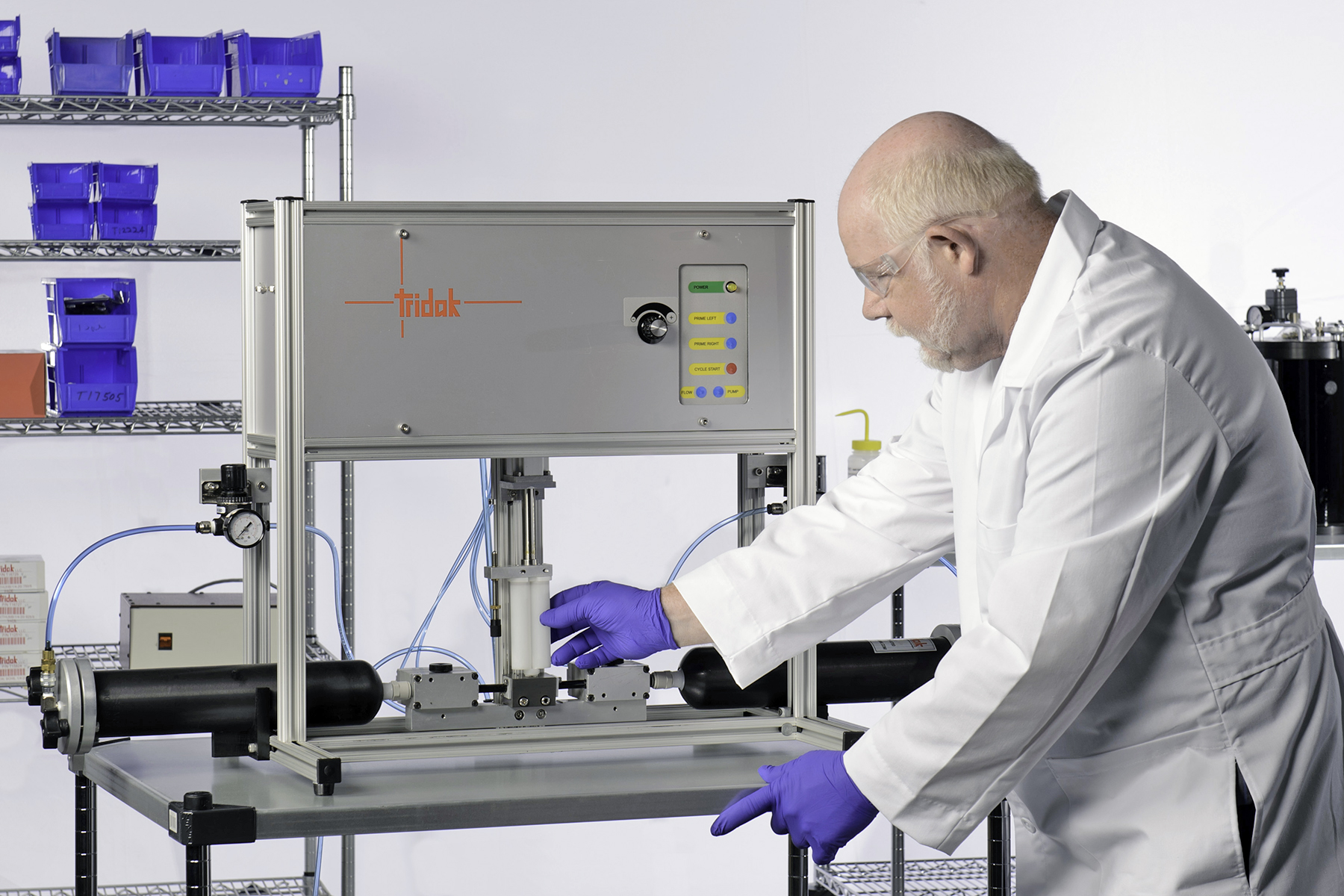

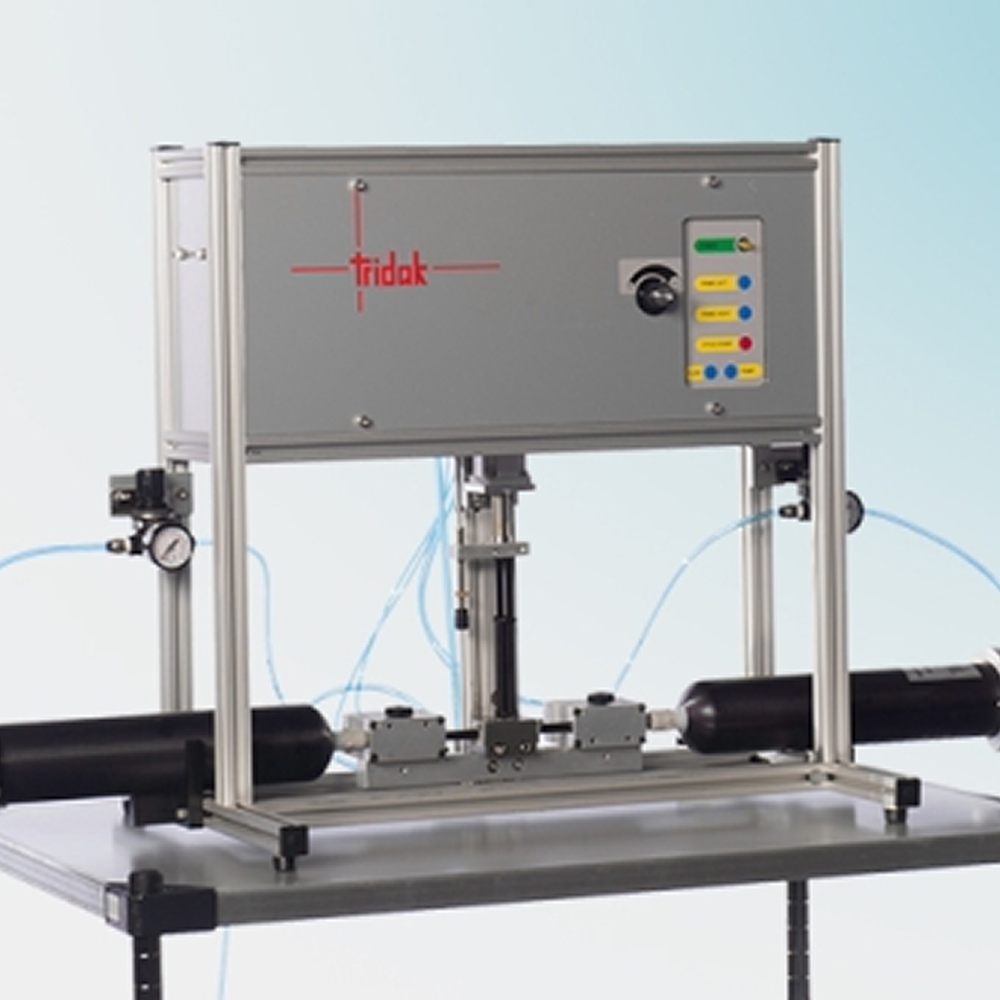

The Tridak Model 1200 Syringe Filler offers void-free, accurate, and consistent syringe filling. It is designed to fill dual-component syringes with either the same or different materials simultaneously. The systems can also be configured to fill small, single-component syringes. This is an ideal filling station for materials like epoxies or composite resins that require two-component mixing. The Model 1200 is also particularly useful for lower volume production or where frequent material change-out is required. A typical fill takes 2-6 seconds. The Model 1200 utilizes a simple software program to give operators complete control over fill speed and position. Operators can easily adjust these factors to customize the fill to their specifications.

Request Quote
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.

Features

  • Pneumatically fills dual-component syringes simultaneously with the same or separate materials
  • Built in electronic PLC controller
  • Dual pressurized cartridge reservoirs
  • Built-in purge system
  • Adjustable fill level, electronically controlled
  • Utilizes disposable fluid path valve technology which eliminates cross-contamination and minimizes clean-up and downtime during product changeover

Resources

Specifications
PropertySpecifications
Part Number(s)T10179 - Model 1200, Base Unit (No Reservoir; includes one nozzle block) T17865 - Model 1200 w/ 550 mL (20 oz.) Reservoir T17866 - Model 1200 w/ 946 mL (32 oz.) Reservoir T178671 - Model 1200 w/ Bottle Reservoir (up to 1 Gal.) T17868 - Model 1200 w/ Two 5-Gal. Pressure Tanks T17869 - Model 1200 w/ Two 10-Gal. Pressure Tanks
Operating Air Pressure60 psi (4.1 bar) min / 80 psi (5.5 bar) max
Electrical Power Required120 VAC, 50/60 Hz
Dimensions (W x H x D)29.125 in x 24.125 in x 18.25 in (73.98 cm x 61.28 cm x 46.36 cm)
Viscosity Range1 – 60,000 cP (or much higher depending on type of reservoir used)

Request more information

Need additional specs, details or help deciding if this product is right for you? We're here to assist.
