Mini-Diaphragm Valve Engineered for Precision Coating in Space-Constrained Applications
SV12
-
SET (San-ei Tech)
Diaphragm Valve

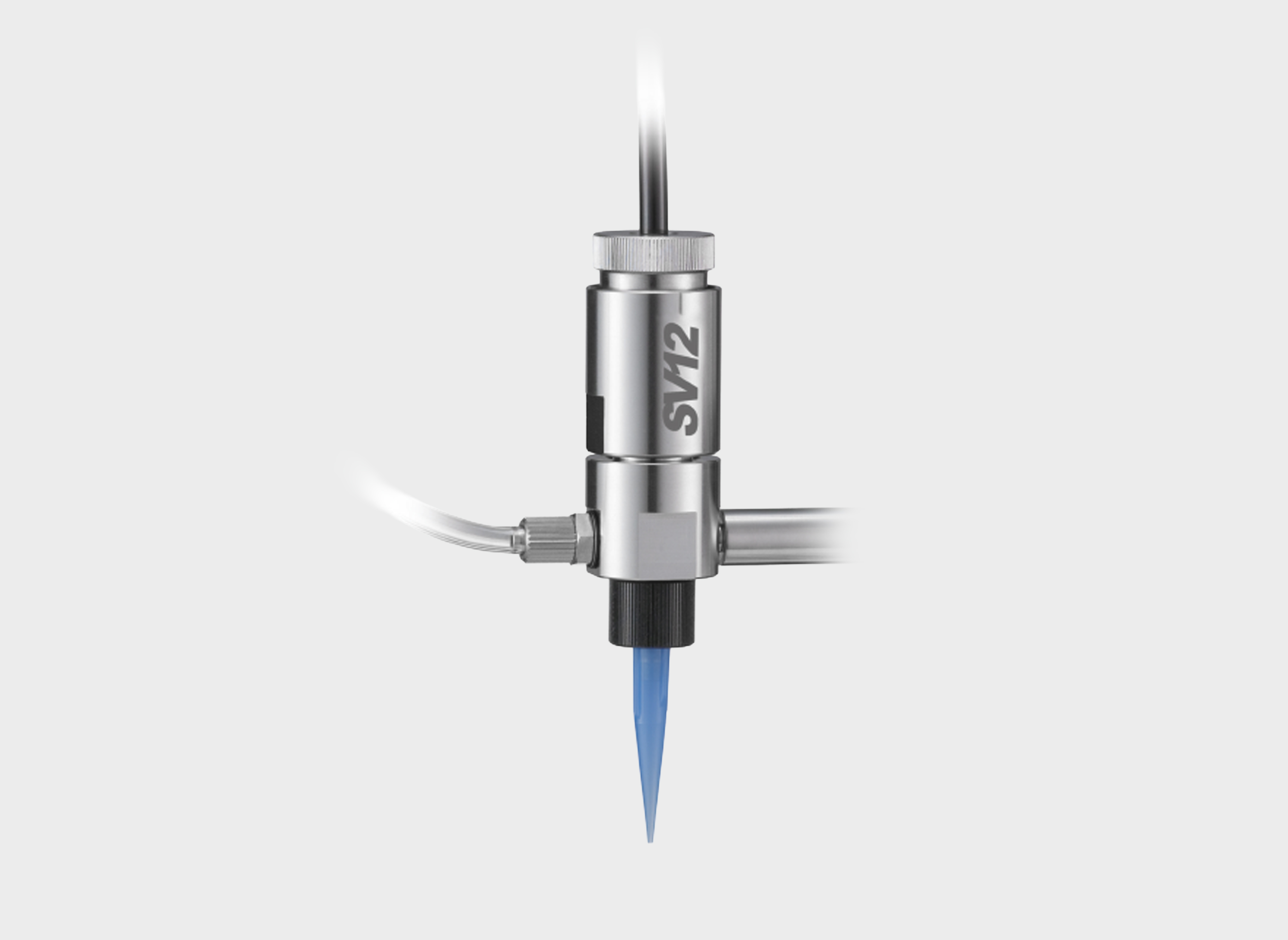

The SV12 is a mini-diaphragm dispense valve designed for drip-free coating and consistent shot-to-shot bonding, especially in applications where space is tight or limited. It is suitable for UV-cure adhesives and other low-to-medium viscosity fluids. As the smallest in its class, the SV12 features a compact and lightweight design with a length of 63.2 mm and a weight of 85 g. The valve provides reliable, low-maintenance operation for millions of cycles and ensures no dripping at both the start and stop of the dispense cycle. It is constructed with a SUS303 fluid body and a UHMW® diaphragm.
Features
- Compact & Lightweight Design - As the smallest in its class, it has a length of 63.2 mm and a weight of 85 g, making it ideal for applications where space is limited.
- Drip-Free Performance - The design ensures no dripping at both the start and stop of the dispense cycle.
- Low-Maintenance Durability - Engineered for low maintenance over millions of cycles.
- Fluid Compatibility - Designed for consistent shot-to-shot bonding of UV-cure adhesives and other low-to-medium viscosity fluids.
- Durable Construction - Features a fluid body and air cylinder made from SUS303, with a UHMW® diaphragm.
Resources
How the Valve Operates
Air pressure retracts the diaphragm seal, allowing fluid to flow (Figure 1). When the cycle completes, a spring returns the piston and closes the diaphragm to shut off fluid flow (Figure 2).
