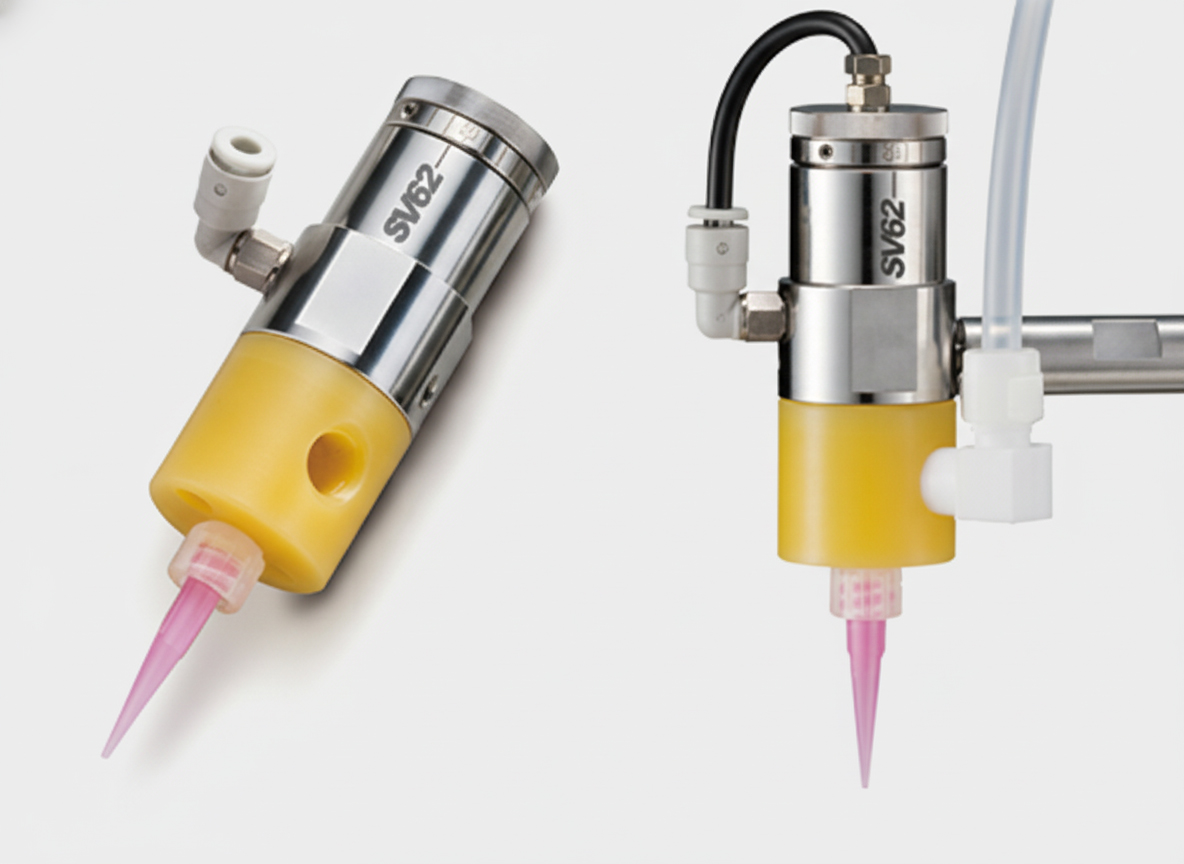

Diaphragm Valve for Reactive Low-to-Medium Viscosity Fluids
SV62
-
SET (San-ei Tech)
Diaphragm Valve
The SV62 is a high-precision diaphragm valve that uniformly applies low to medium viscosity liquids such as solvents, instant adhesives, anaerobic adhesives, and fluxes. It is designed with an inert polymer resin that does not react with the liquids, making it ideal for dispensing reactive materials. The valve's quick and reliable shut-off action prevents liquid dripping and maintains excellent liquid drainage properties. Due to its small and lightweight design, it is easy to install in locations where space is limited.
Features
- Compatible with Reactive Materials - Uses an inert polymer resin that does not react with liquids, making it ideal for reactive fluids like instant or anaerobic adhesives.
- Drip-Free Shut-Off - A quick and reliable shut-off action prevents liquid dripping after dispensing.
- Liquid Volume Control - The design allows for the control of the liquid volume being dispensed.
- Compact & Lightweight - A small and lightweight design that does not take up significant installation space.
Resources
How the Valve Operates
Air pressure retracts the diaphragm seal, allowing fluid to flow (Figure 1). When the cycle completes, a spring returns the piston and closes the diaphragm to shut off fluid flow (Figure 2).
