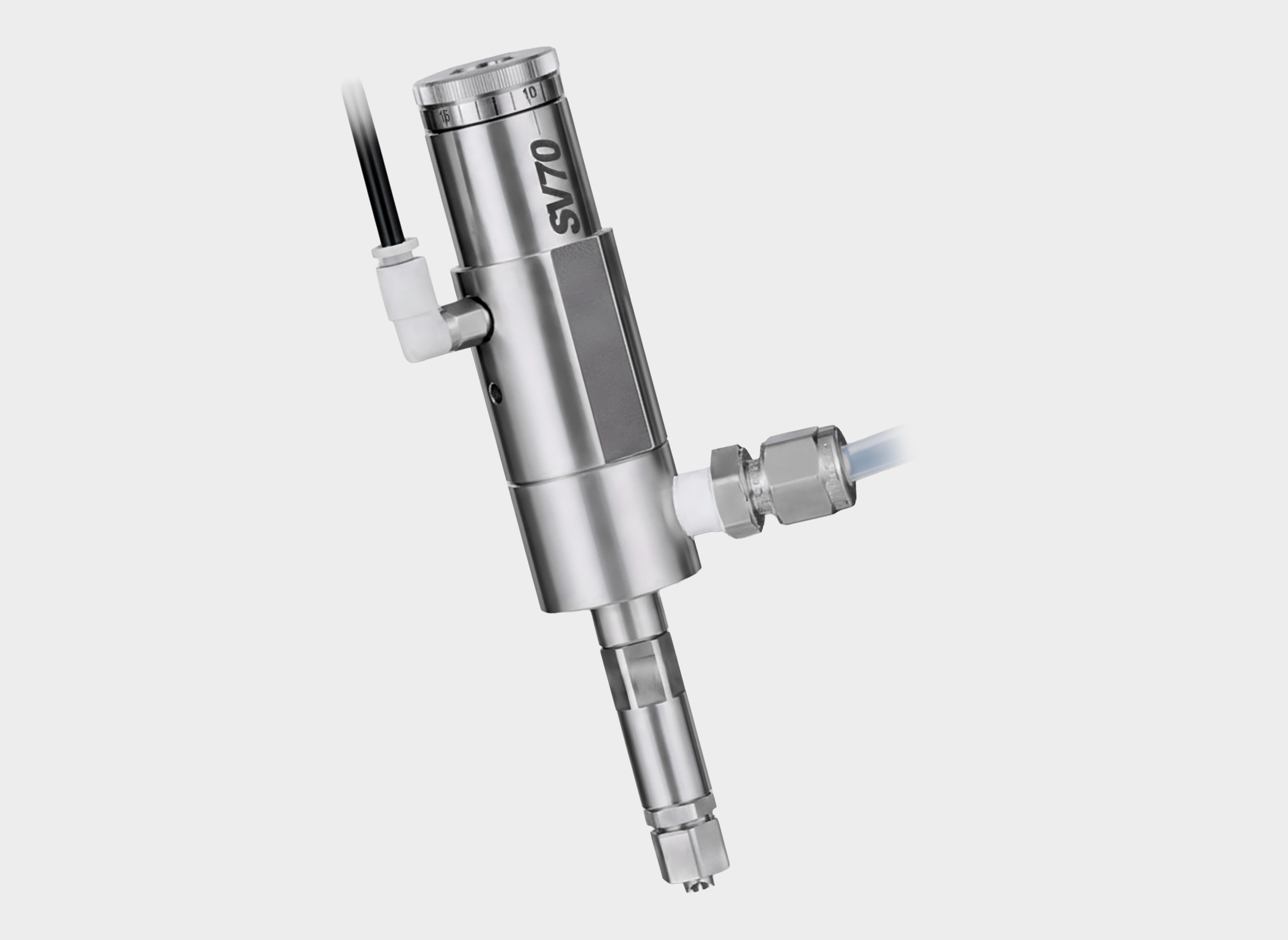

Conformal Coating Valve with Square-Cut Nozzle
SV70
-
SET (San-ei Tech)
Conformal Coating Valve
The SV70 is a conformal coating valve specifically designed to control high viscosity materials and prevent scattering. Its core feature is a unique square nozzle made from a durable carbide material, which allows for a wide range of coatings at low flow rates and reduces liquid clogging. This nozzle design produces a stable coating trajectory, achieving a high-dimensional, precise coating pattern without the mist, scattering, or air bubbles common to these applications. The SV70 also features a high-speed response for fast tact times and excellent liquid drainage, ensuring stable discharge performance at the start and end of every application. (Note: This valve is not compatible with circulating liquid temperature control systems).
Features
- Unique Square Nozzle - Features a square nozzle made of carbide material that reduces clogging and provides a stable, long-lasting discharge performance.
- Wide, Precise Coating - Enables a wide coating pattern even at low flow rates and achieves a high-precision coating without mist, scattering, or air bubbles.
- High-Viscosity Control - Specifically designed to control high-viscosity materials for substrate coating applications.
- High-Speed Response - A fast-response design allows for high-speed tact times and excellent liquid drainage.
Resources
How the Valve Operates
Air pressure retracts the piston needle from the nozzle seat, allowing fluid to flow (Figure 1). When the cycle completes, the spring returns the piston needle to its sealed position, shutting off fluid flow (Figure 2).
